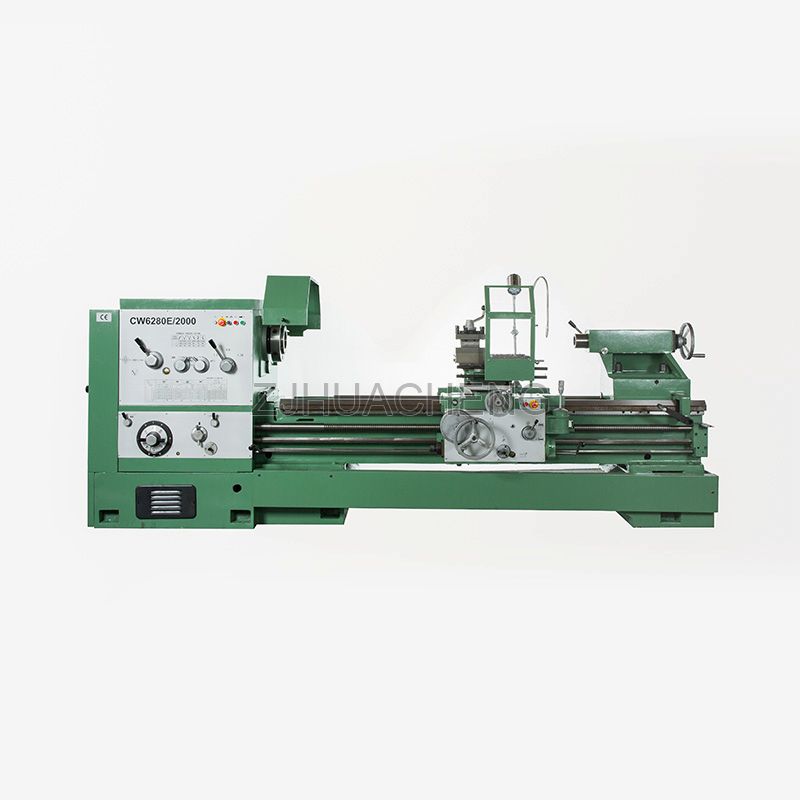

Light-duty Unniversal Lathe
ID: #416833
Listed In : Equipment And Supplies
Business Description
CW-E series machine is the universal lathe, suitable for high speed steel and hard alloy steel cutting tools
More information you can click here
MODEL CW61(2)63E CW61(2)80E CW61(2)100E CW61(2)120E
CAPACITIES
Max.swing over bed 630mm 800mm 1000mm 1200mm
Max.swing over cross slide 350mm 485mm 685mm 800mm
Center distance 1000 1500 2000 3000 4000 5000 6000 8000 10000mm
Max.swing over gap 830mm 1000mm 1200mm 1400mm
Valid length of gap 300m
Bed width 550mm
Max weight of workpiece 3T
HEAD-STOCK
Spindle hole 105mm OR 130mm (OPTIONAL FOR CW6180E+)
Spindle nose D-11
Spindle taper 1:20
Spindle speeds(Number) 14-750RPM(18 STEPS)
GEAR BOX-THREADS & FEEDS
Metric threads range(kinds) 1-240mm(54 kinds)
Inch threads rangs(Kinds) 28-1 inch(36 kinds)
